Description

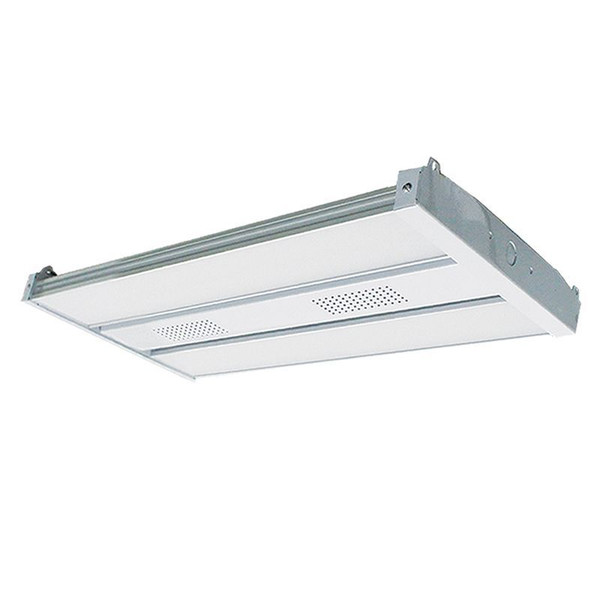

The LLHB4 linear high bay delivers high-output illumination for warehouses, manufacturing floors, and other large interiors. Its white steel housing and linear profile pair with a polycarbonate lens to provide broad workplace lighting.
This fixed-output model produces 23,250 lumens at 4000K and operates on a 480V supply. Included V-hooks support suspended installation, while 0-10V dimming enables adjustment with a compatible control system.
- • 150W output delivers 23,250 lumens of balanced 4000K light.
- • A broad beam supports general illumination across large indoor work areas.
- • Included V-hooks provide a suspension point; suspension cable is not included.
- • The fixture operates on 480V and supports 0-10V dimming.
- • UL and DLC listings and damp-location suitability support commercial installations.
Why Choose the LLHB4-150W-40K-D-480V?
Choose this linear high bay when a facility needs strong fixed-output 4000K illumination and 480V compatibility in a suspended fixture.
Specifications
| brand | Westgate |
| weight | 9.92lb |
| bulb wattage | 150.00W |
| lumens | 23250.00lm |
| color temp | 4000K |
| cri | 80 |
| bulb avg life | 50,000 |
| voltage | 480.00V |
| material | Extrued Aluminum Housing |
| safety listing | UL |
| type | Commercial |
| finish | White |
| style | Transitional |
| manufacturer finish | White |
| manufacturer glass | Polycarbonate lens |
| width | 17.72in |
| height | 1.97in |
| length | 24.21in |
| UPC | 845060073416 |
| SKU | West-LLHB4-150W-40K-D-480V |
