Description

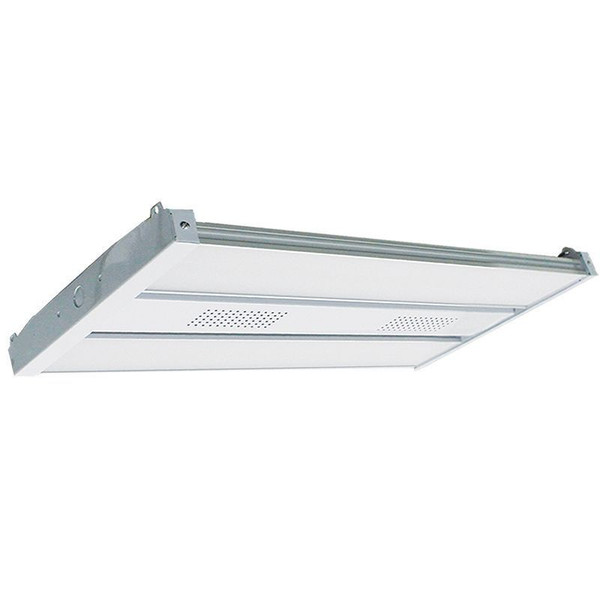

The Westgate LLHB4-150W-MP-40K-D-SR is a sensor-ready linear high bay for warehouses, manufacturing spaces and other large interiors. Set the output to 80W, 100W or 150W and use 4000K light, with lumen output ranging from 12,400 to 23,250 lumens.
A 24-gauge steel housing and polycarbonate lens give the fixture a durable commercial profile. The built-in single-pin audio jack accepts an optional motion sensor, and 0-10V dimming provides another way to adjust the light level. A surface-mounting option is available separately.
- • The 150W setting delivers 23,250 lumens at 155 lm/W, while lower settings provide 12,400 lumens at 80W and 17,050 lumens at 100W.
- • It operates on 120-277V AC and is suitable for damp locations from -4°F to 104°F.
- • The fixture measures 24-1/4 inches long, 17-3/4 inches wide and 2 inches high.
- • A 50,000-hour rated life, five-year warranty, UL listing and DLC listing support commercial project planning.
Why Choose the LLHB4-150W-MP-40K-D-SR?
Choose this power-adjustable high bay when a large indoor space needs flexible output, 4000K light and room to add occupancy-based control.
Specifications
| brand | Westgate |
| weight | 11.00lb |
| bulb type | LED |
| lumens | 125.00lm |
| color temp | 4000K |
| cri | 80 |
| voltage | 120.00V |
| material | Steel |
| safety listing | UL |
| type | Commercial |
| finish | Cream/Beige |
| style | Contemporary Modern |
| manufacturer finish | White |
| width | 17.70in |
| height | 2.00in |
| length | 24.20in |
| bulb wattage | 150.00W |
| bulb avg life | 50,000 |
| UPC | 840378318945 |
| SKU | West-LLHB4-150W-MP-40K-D-SR |
