Description

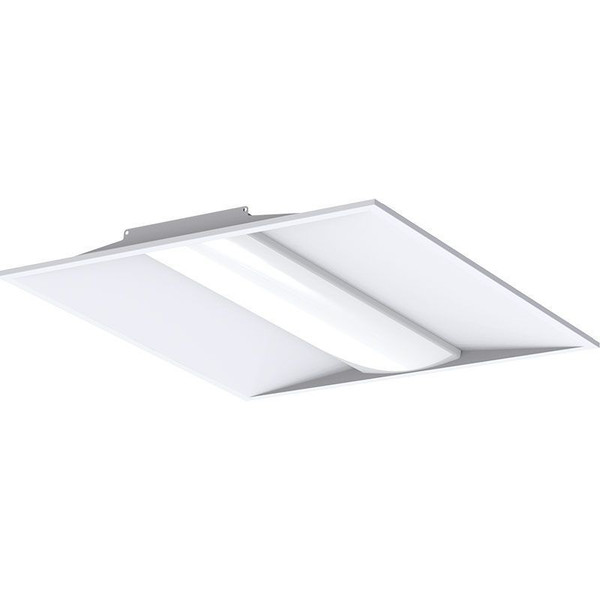

The LTRS-2X2-MCTP brings a clean center-basket look to offices, retail areas, restaurants, and other shared spaces. Its white steel housing keeps the ceiling presentation simple, while selectable output settings let the fixture adapt to different room needs.
Set the wattage and color temperature beneath the lens to suit the space, then use a compatible 0-10V control to adjust brightness. Built-in earthquake hooks add a useful installation detail, and the driver box and lens are designed for field assembly.
- • Choose among 25W, 35W, 36W, or 40W and select 3500K, 4000K, or 5000K light at the fixture.
- • The 2X2 LED center-basket format provides a familiar ceiling-light layout for commercial interiors.
- • A 0-10V dimming connection supports compatible brightness controls.
- • Cold-rolled steel construction, built-in earthquake hooks, and UL listing support a durable, code-conscious installation.
Why Choose the LTRS-2X2-MCTP?
Choose this adjustable troffer when one fixture needs to provide flexible wattage and color choices, dimming control, and a familiar center-basket appearance.
Specifications
| brand | Westgate |
| weight | 4.96lb |
| lumens | 125.00lm |
| color temp | 3500K |
| cri | 80 |
| beam spread | 120.00 |
| bulb avg life | 50,000 |
| voltage | 120.00V |
| material | Metal sheet+PC lens |
| safety listing | UL |
| type | Commercial |
| finish | White |
| style | Traditional |
| manufacturer finish | Matt White |
| manufacturer glass | Polycarbonate Lens |
| width | 23.60in |
| height | 1.60in |
| length | 23.60in |
| bulb wattage | 40.00W |
| UPC | 845060087093 |
| SKU | West-LTRS-2X2-MCTP |
