Description

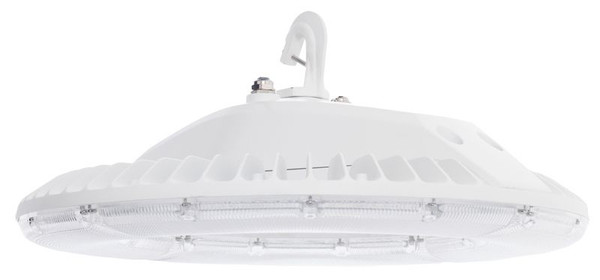

The USHB-200W-50K brings the Saturn Architectural High Bay's broad, powerful illumination to large interior and covered work areas. Its 200W LED delivers 26000 lumens of 5000K light through a 110-degree beam, helping spread bright, crisp visibility across open floor plans.
An aluminum LED board supports the fixture, while the supplied 6-foot cable simplifies connection at the installation point. The high bay runs on 120-277V power and supports 0-10V dimming for compatible control systems.
- • The 110-degree beam distributes light broadly across large spaces.
- • 0-10V dimming allows output adjustment with a compatible control system.
- • An IP66 wet-location rating supports demanding installation environments.
- • The fixture is specified for operation from -4F to 122F and includes a five-year warranty.
Why Choose the USHB-200W-50K?
Choose this Saturn high bay for high-output 5000K illumination, broad coverage, and dimming support in a rugged wet-location-rated fixture.
Specifications
| brand | Westgate |
| weight | 13.56lb |
| bulb wattage | 200.00W |
| lumens | 26000.00lm |
| color temp | 5000K |
| cri | 80 |
| beam spread | 110.00 |
| bulb avg life | 50,000 |
| voltage | 120.00V |
| material | Aluminum Housing, Outdoor Powder Coating |
| safety listing | UL |
| type | Commercial |
| finish | White |
| style | Transitional |
| manufacturer finish | White |
| manufacturer glass | Polycarbonate Lens |
| width | 17.52in |
| height | 7.47in |
| length | 17.52in |
| UPC | 845060030396 |
| SKU | West-USHB-200W-50K |
