Description

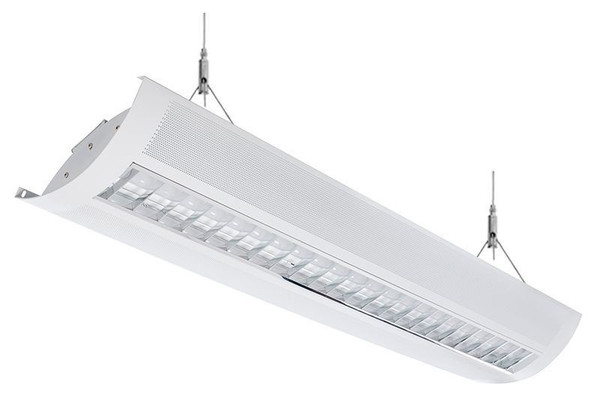

The Westgate SCLP-UD brings a clean, architectural profile to suspended lighting, pairing a long parabolic form with a louvered face. Its up/down distribution sends useful light both toward the work plane and across the ceiling, giving larger spaces a more balanced feel.
In the documented up/down mode, the 3500K LED system delivers 4400 lumens upward and 2100 lumens downward at 40W/20W. The fixture can also operate as a 60W downlight. Its anodized aluminum housing measures 49.2 by 11 by 2.8 inches and accepts 120-277V power with 0-10V dimming.
- • The 3500K light provides a warm-neutral tone for offices, studios, and shared work areas.
- • A louver lens shapes the light within the fixture's slim parabolic form.
- • Use compatible 0-10V controls to adjust light output across the day.
- • The coupling bracket and power cord are not included; suspension hardware is available separately.
Why Choose the SCLP-UD-4FT-60W-35K-D?
Choose this suspended fixture when a project calls for both ceiling and task illumination in one coordinated profile, with a separately selectable down-only mode for applications that need all output directed below.
Specifications
| brand | Westgate |
| weight | 7.72lb |
| bulb wattage | 40.00W |
| lumens | 2100.00lm |
| color temp | 3500K |
| cri | 80 |
| bulb avg life | 50,000 |
| voltage | 120.00V |
| material | Anodized Aluminum |
| safety listing | UL |
| safety rating | DLC,UL |
| type | Commercial |
| finish | White |
| style | Contemporary Modern |
| manufacturer finish | White |
| manufacturer glass | Louver lens |
| width | 11.02in |
| height | 2.76in |
| length | 49.21in |
| UPC | 845060010961 |
| SKU | West-SCLP-UD-4FT-60W-35K-D |
