Description

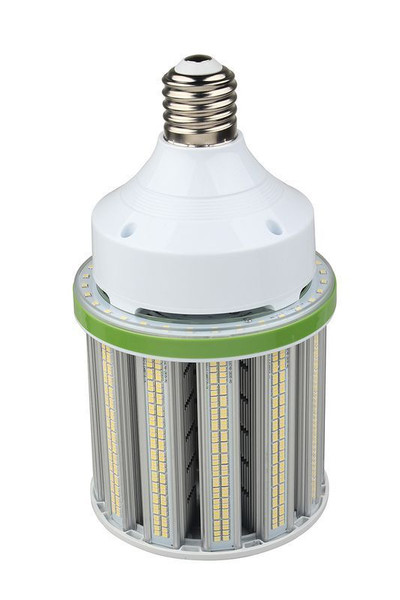

This 125W LED corn lamp refreshes compatible HID fixtures with bright, all-around 5000K light. LEDs on the bottom as well as around the lamp create a 360-degree beam, helping spread illumination through high-bay, shoebox, floodlight and wall-pack applications.
The E39 mogul-base lamp delivers 16,250 lumens with a CRI above 80 and operates on 120–277VAC. Its fanless heat sink and sealed driver support the lamp design, while the vertical, base-up orientation is essential for proper installation.
- • A 125W LED array produces 16,250 lumens at 5000K.
- • The E39 mogul base fits compatible sockets in existing fixtures.
- • Install vertically with the base up; horizontal mounting is not supported.
- • For enclosed fixtures, provide at least 17.7 inches of height, 11 inches of diameter and 2,153 cubic inches of internal space.
- • Suitable for damp locations and UL listed, with an operating temperature range of -4°F to 149°F.
Why Choose the Westgate CL-HL-125W-50K-E39?
Choose this corn lamp when a compatible E39 fixture needs high-output, 5000K lighting with broad 360-degree coverage. Confirm the socket, base-up orientation and enclosure clearance before installation.
Specifications
| brand | Westgate |
| weight | 3.48lb |
| bulb wattage | 125.00W |
| bulb type | LED |
| lumens | 16250.00lm |
| color temp | 5000K |
| cri | 80 |
| beam spread | 360.00 |
| bulb avg life | 50,000 |
| voltage | 120.00V |
| material | Lamp plastic housing and Sealant pouring for whole driver |
| safety listing | UL |
| safety rating | UL,DLC |
| type | Tubular |
| finish | White |
| style | Medium |
| manufacturer finish | White |
| manufacturer glass | Polycarbonate |
| width | 10.57in |
| height | 5.69in |
| length | 5.69in |
| UPC | 845060019179 |
| SKU | West-CL-HL-125W-50K-E39 |
